Single Port Jacks
-
Bottom Entry PCB Socket
AJ-001 / AJ-002 Series AJ-001 / AJ-002 Series
- 1 x 1 configuration
- Product Specification: Bottom entry, 4, 6 positions
- PCB Mount Angle = Bottom Entry
- PCB Mount Style = Through Hole
- PCB Termination Type = Solder
- Not Shielded
- Performance Category = Cat 3
- Height = 12.5 mm
- Conventional Jack Interface
Inquiry Info. RJ11, 4 Positions RJ12, 6 Positions RJ12, 6 Positions, DEC
-
Bottom Entry P.C.B. Jack
AJ-003 Series AJ-003 Series
- 1 x 1 configuration
- Product Specification: Bottom entry, 6, 8 positions
- PCB Mount Angle = Bottom Entry
- PCB Mount Style = Through Hole
- PCB Termination Type = Solder
- Not Shielded
- Performance Category = Cat 3
- Height = 12.0 mm
- Conventional Jack Interface
Inquiry Info. AJ-003-6
RJ12, 6 Position AJ-003-8
RJ12, 8 Position -
Side Entry P.C.B. Jack
AJ-004 / AJ-005 / AJ-006 Series AJ-004 / AJ-005 / AJ-006 Series
- 1 x 1 configuration
- Product Specification: Side entry, 8, 6, 4 positions
- PCB Mount Angle = Side Entry (Right Angle)
- PCB Mount Style = Through Hole
- PCB Termination Type = Solder
- Not Shielded
- Performance Category = Cat 3
- Height = 16.0 mm
- Conventional Jack Interface
Inquiry Info. AJ-004
Jack Type = RJ45
Number of Postions = 8 AJ-005
Jack Type = RJ12
Number of Postions = 6 AJ-006
Jack Type = RJ11
Number of Postions = 4 -
Side Entry Shielded Jack
AJ-007 Series AJ-007 Series
- 1 x 1 configuration
- Product Specification: Bottom entry, 4, 6 positions
- Shielded jack available with two grounding paths - pc board and panel
- PCB Mount Angle = Side Entry (Right Angle)
- PCB Mount Style = Through Hole
- PCB Termination Type = Solder
- Shielded
- Performance Category = Cat 3
- Height = 13.6 mm
- Conventional Jack Interface
Inquiry Info. RJ11, 4 Positions
Unshielded RJ12, 6 Positions
Unshielded RJ12, 6 Positions
Shielded -
Side Entry RJ45 P.C.B. Jack
AJ-008 / AJ-009 Series AJ-008 / AJ-009 Series
- 1 x 1 configuration
- Product Specification: Bottom entry, 8 positions
- Shielded jack available with two grounding paths - pc board and panel
- PCB Mount Angle = Side Entry (Right Angle)
- PCB Mount Style = Through Hole
- PCB Termination Type = Solder
- Shielded
- Performance Category = Cat 5
- Height = 13.6 mm
- Conventional Jack Interface
Inquiry Info. RJ45, Unshielded
Standard RJ45, Unshielded
Category 5 RJ45, Shielded
Standard RJ45, Shielded
Category 5 -
Side Entry P.C.B. Jack
AJ-010 / AJ-011 Series AJ-010 / AJ-011 Series
- 1 x 1 configuration
- Product Specification: Side entry, 4, 6 positions
- PCB Mount Angle = Side Entry (Right Angle)
- PCB Mount Style = Through Hole
- PCB Termination Type = Solder
- Not Shielded
- Performance Category = Cat 3
- Height = 14.5 mm
- Conventional Jack Interface
Inquiry Info. AJ-010-4
RJ11, 4 Positions AJ-010-6
RJ12, 6 Positions AJ-011-4
RJ11, 4 Positions, Flangeless AJ-011-6
RJ12, 6 Positions, Flangeless -

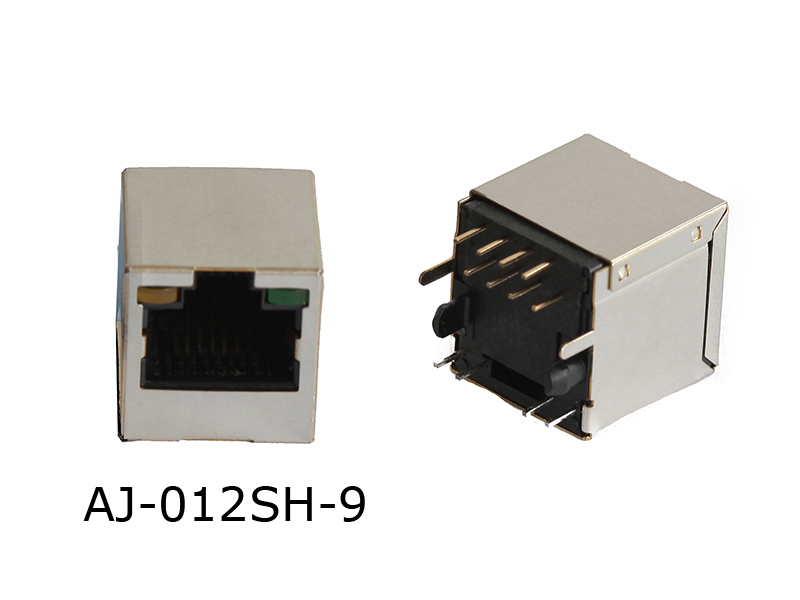

Top Entry P.C.B. Jack with Shield
AJ-012SH Series AJ-012SH Series
- 1 x 1 configuration
- Product Specification: Top entry, 8 positions
- With Shield
- With LED
- PCB Mount Angle = Top Entry (Vertical)
- PCB Mount Style = Through Hole
- PCB Termination Type = Solder
- Shielded
- Performance Category = Cat 3
- Height = 16.4 mm
- Conventional Jack Interface
-
Top Entry P.C.B. Jack
AJ-012 Series AJ-012 Series
- 1 x 1 configuration
- Product Specification: Top entry, 8 positions
- PCB Mount Angle = Top Entry (Vertical)
- PCB Mount Style = Through Hole
- PCB Termination Type = Solder
- Not Shielded
- Performance Category = Cat 3
- Height = 16.4 mm
- Conventional Jack Interface
Inquiry Info. AJ-012-4
RJ11, 4 Positions AJ-012-6
RJ12, 6 Positions AJ-012-8
RJ45, 8 Positions -
Top Entry P.C.B. Jack
AJ-014 Series AJ-014 Series
- 1 x 1 configuration
- Product Specification: Top entry, 6 positions
- PCB Mount Angle = Top Entry (Vertical)
- PCB Mount Style = Through Hole
- PCB Termination Type = Solder
- Not Shielded
- Performance Category = Cat 3
- Height = 15.5 mm
- Conventional Jack Interface
-
Very Loe Profile Side Entry Jack
AJ-019 Series AJ-019 Series
- 1 x 1 configuration
- Product Specification: Side entry, 4, 6, 8 positions
- PCB Mount Angle = Side Entry (Right Angle)
- PCB Mount Style = Through Hole
- PCB Termination Type = Solder
- Unshielded
- Performance Category = Cat 3
- Height = 11.7 mm
- Conventional Jack Interface
Inquiry Info. RJ11 4Positions RJ12 6Positions RJ45 8Positions RJ45 Insert Type
